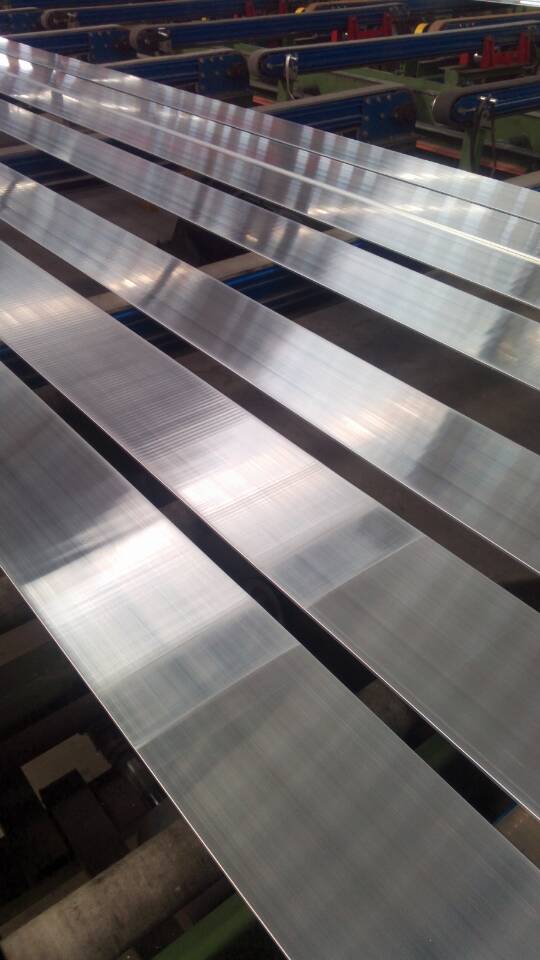

EN AW-6101BT6 aluminium bus bar is American deformed aluminum and aluminum alloy. EN aw-6101b is a high strength conductive material of aluminum alloy. 55% IACS guarantees good corrosion resistance and weld ability for processing high strength bus conductor.



EN AW-6101BT6 aluminium bus bar physical properties :
Tensile strength: ≥ 215mpa
Yield strength: ≥ 100MPa
Elongation: ≥ 8%
Our 6101B T6 Electrical conductivity:γ≥30MS/M

EN AW-6101BT6 aluminium bus bar chemical composition:
Al : allowance
Si: 0.30 ~ 0.7
Fe: ≤ 0.50
Cu: ≤ 0.10
Mn: ≤ 0.03
Mg: 0.35 ~ 0.8
Cr: ≤ 0.03
Zn: ≤ 0.10
B: ≤ 0.06
Titanium Ti: -
Other elements not specified: each: ≤ 0.03; total: ≤ 0.10
