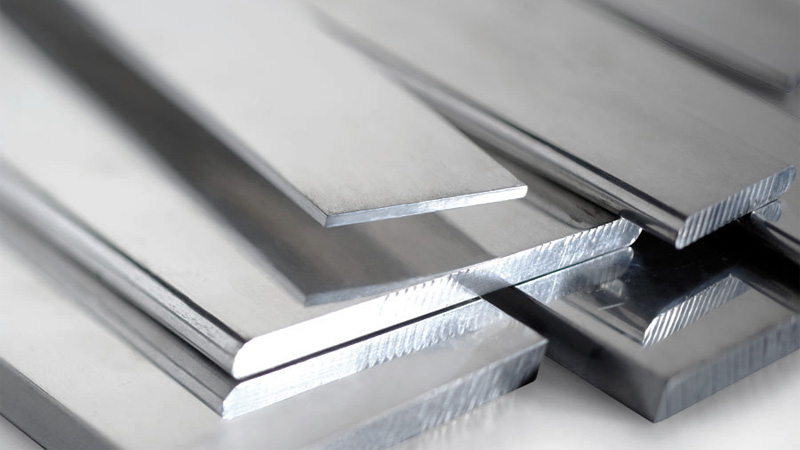

EN AW-1070A O aluminium flat bus bar coil is industrial pure aluminum with aluminum content up to 99.7%. Industrial pure aluminum has the general characteristics of aluminum, low density, good electrical and thermal conductivity, good corrosion resistance, good plastic processing performance, can be processed into plates, tapes, foils and extruded products, etc., can be gas welding, argon arc welding, spot welding. Industrial pure aluminum cannot be strengthened by heat treatment, but can be strengthened by cold deformation. The only form of heat treatment is annealing.
EN AW-1070A O aluminium flat bus bar coil Usage: Widely used in products that do not require high strength, such as chemical instruments, thin plate processing parts, deep drawing or spinning concave utensils, welding parts, heat Exchanger, transformer busbar, etc.
EN AW-1070A O aluminium flat bus bar coil
Tolerance: +/- 0.1mm
Length: up to 6m or roll
Width: 10mm - 200mm
Thickness: 0.15mm - 40mm
Application: Electric
Surface Treatment: Zinc, Nickel, Tin, Silver, etc.
EN AW-1070A O aluminium bus bar coil Chemical Composition
| Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others | Al. | |
| Individual | Total | |||||||||
| Max. 0.20 |
Max. 0.25 |
Max. 0.04 |
Max. 0.03 |
Max. 0.03 |
— |
Max. 0.04 |
Max. 0.03 |
Max. 0.03 |
— | Min. 99.70 |
