1070 Aluminium Flat Bus Bar
Author:Frank Time:2023-06-14
The most common form of bus conductor is bar stock of rectangular cross section. This shape is inherently easy to fabricate, store, handle and erect. A relatively large surface area can be provided for the dissipation of heat by the use of multiple-bar buses. Joints and taps are readily made by either bolting or welding. Off-sets and 90-degree bends are easily made.For direct current, as well as for alternating current up to certain limits, the capacity of a bus constructed of flat bar can be controlled by merely varying the size of bars or number of bars in parallel. For high-amperage alternating current, however, special arrangements of laminations are used .

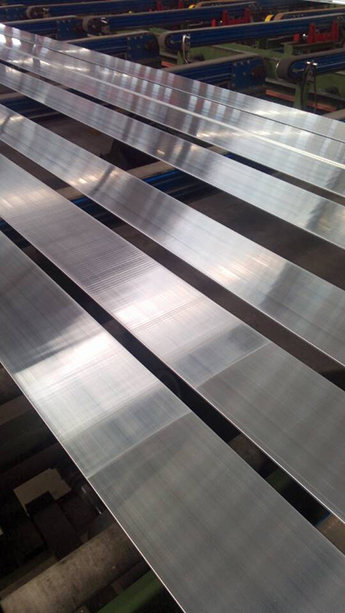

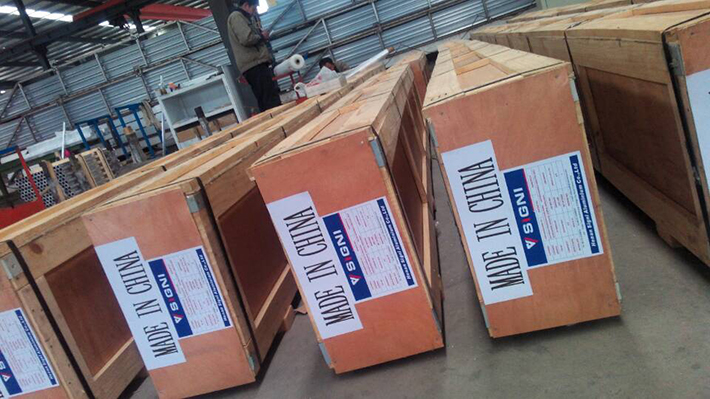

Packaging Details:
Delivery Detail: 2 - 3 weeks ( depends on quantity )
Place of Origin: Zhengzhou, China (Mainland)
Brand Name: Signi
Model Number: AL1070
Material: Aluminum
Product Name: Customized Aluminum Busbar
Surface Treatment: Zinc, Nickel, Tin, Silver, etc.
Tolerance: +/- 0.1mm
Length: up to 6m
Width: 10mm - 200mm
Thickness: 0.15mm - 40mm
Application: Electric
Processing: Stamping, Bending, Drilling, Threading, Polishing, etc.
|
|
|---|
Chemical Composition
| Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others | Al. | |
|---|---|---|---|---|---|---|---|---|---|---|
| Individual | Total | |||||||||
| Max. 0.20 |
Max. 0.25 |
Max. 0.04 |
Max. 0.03 |
Max. 0.03 |
— |
Max. 0.04 |
Max. 0.03 |
Max. 0.03 |
— | Min. 99.70 |
Properties
Aluminium and Copper Specifications
| Parameters | Aluminium | Copper |
|---|---|---|
| Relevant Standards |
IEC 60105 ISO 209-1,2 |
IEC 60028 |
|
Physical Properties Chemical Composition Specific Heat gm.cal/℃ Density gm/cm2 Melting Point ℃ |
0.092 2.91 660 |
99% pure 0.220 8.89 1083 |
|
Mechanical Properties Ultimate Tensile Strength kgf/mm2 Ultimate Shearing Strength kgf/mm2 Elastic Modulus kgf/mm2 0.2% Tensile-proof Strength kgf/mm2 |
20.5/25 15 6,700 16.5/22 |
22-26 16-19 12000 60-80% of tensile strength |
|
Electrical Properties Specific Resistance ʋʊcm Volume Conductivity ʋʊmm2 Conductivity % IACS Co-efficient of expansion mm/m/℃ |
3.133 31.9 57 2.3*10-5 |
1.7241 58 100 1.73*10-5 |
| Square angle aluminum bar | ||||||||||
| 2mm | 2*30 | 2*40 | 2*67 | 2*70 | 2.5* 25 | |||||
| 3mm | 3*10 | 3*15 | 3*20 | 3*25 | 3*30 | 3*40 | 3*50 | 3*60 | 3*67 | 3*75 |
| 3*110 | ||||||||||
| 4mm | 4*10 | 4*15 | 4*20 | 4*25 | 4*30 | 4*40 | 4*45 | 4*50 | 4*60 | 4.6*60 |
| 4.8*9.8 | ||||||||||
| 5mm | 5*15 | 5*20 | 5*25 | 5*30 | 5*35 | 5*40 | 5*50 | 5*60 | 5*80 | 5*100 |
| 6mm | 6*20 | 6*25 | 6*30 | 6*40 | 6*50 | 6*54 | 6*55 | 6*60 | 6*65 | 6*70 |
| 6*75 | 6*80 | 6*100 | 6*120 | 6*150 | 6*160 | |||||
| 6.3mm | 6.3*50 | 6.3*63 | 6.3*63.5 | 6.3*80 | 6.35*50.8 | 6.35*76.2 | ||||
| 7mm | 7.6*80 | 7*150 | 7*4*20*4 | |||||||
| 8mm | 8*11 | 8*30 | 8*40 | 8*50 | 8*51 | 8*60 | 8*63 | 8*63.5 | 8*65 | 8*70 |
| 8*80 | 8*90 | 8*100 | 8*120 | 8*125 | 8.8*28.6 | |||||
| 9mm | 9*170 | 9*125 | 9. 2*64 | |||||||
| 10mm | 10*20 | 10*25 | 10*30 | 10*40 | 10*45 | 10*50 | 10*60 | 10*63 | 10*65 | 10*70 |
| 10*80 | 10*90 | 10*100 | 10*110 | 10*114 | 10*120 | 10*125 | 10*140 | 10*150 | 10*160 | |
| 12mm | 12*30 | 12*40 | 12*45 | 12*50 | 12*60 | 12*70 | 12*76 | 12*80 | 12*100 | 12*120 |
| 12*125 | 12*130 | 12*140 | 12*150 | 12*160 | ||||||
| 12.5mm | 12.5*90 | 12.5*100 | 12.5*125 | 12.5*127 | 12.7*101.6 | 12.7*160 | ||||
| 13mm | 13*125 | 13*130 | 13*160 | |||||||
| 14mm | 14*100 | 14*120 | 14.5*80 | |||||||
| 15mm | 15*30 | 15*35 | 15*50 | 15*60 | 15*80 | 15*100 | 15*120 | 15*125 | 15*150 | |
| 16mm | 16*30 | 16*90 | 16*100 | 16*110 | 16*125 | 16*130 | 16*140 | 16*150 | 16*160 | |
| 20mm | 20*76 | 20*100 | 20*120 | 20*130 | ||||||
| Square bar | 19*19 | 30*45 | 15*15 | |||||||
| Round bar | Φ6 | Φ8 | Φ10 | Φ11 | Φ12 | Φ14 | Φ15 | Φ15.6 | Φ16 | Φ18 |
| Φ20 | Φ21 | Φ22 | Φ23 | Φ25 | Φ27 | Φ28 | Φ30 | Φ32 | Φ35 | |
| Φ38 | Φ40 | Φ45 | Φ50 | Φ55 | Φ60 | |||||
| Round angle aluminum bar | |||||||||
| 2mm | R2*20 | R2.5* 50 | |||||||
| 3mm | R3*30 | R3*40 | R3*50 | R3*60 | R3*80 | R3*100 | R3*120 | R3*160 | |
| 4mm | R4*25 | R4*30 | R4*35 | R4*40 | R4*50 | R4*60 | R4.1*44.1 | R4.7*151 | |
| 5mm | R5*30 | R5*35 | R5*40 | R5*45 | R5*50 | R5*60 | R5*70 | R5*75 | R5*80 |
| R5*90 | R5*100 | R5*120 | |||||||
| 6mm | R6*40 | R6*50 | R6*60 | R6*70 | R6*80 | R6*100 | R6*120 | R6*140 | R6*160 |
| R6.3*63 | R6.35*76.5 | ||||||||
| 7mm | R7*70 | ||||||||
| 8mm | R8*40 | R8*50 | R8*60 | R8*80 | R8*100 | RS*120 | |||
| 10mm | R10*20 | R10*40 | R10*50 | R10*60 | R10*75 | R10*80 | R10*100 | R10*120 | R10*125 |
| R10*150 | R10*160 | R10*170 | R10.4*25 | ||||||
| 12mm | R12*80 | R12*100 | R12*110 | R12*120 | R12*125 | R12*150 | R12*160 | ||
| 12.5mm | R12.5*80 | R12.5*125 | R12.7*90 | R12.7*127 | |||||
| 13mm | R13*120 | R13*125 | |||||||
| 14mm | R14*100 | R14*120 | R14*150 | ||||||
| 15mm | R15*100 | R15*120 | R15*130 | R15*150 | |||||
| 16mm | R16*150 | R16*160 | |||||||
| 19mm | R19.05*101.6 | R19.05*127 | |||||||
| 20mm | R20*80 | R20*120 | R20*130 | ||||||
| Special-shaped hypotenuse | *4*50 | *5*50 | *5*60 | *6*40 | *6*50 | *6*60 | *6*80 | *8*60 | *8*80 |
| *8*100 | *8*120 | *10*40 | *10*80 | *10*100 | *10*120 | *12*80 | *12*100 | *12*120 | |
| *15*120 | *20*130 | *28*60 | |||||||
Features:
Metal Mate aluminium flat bar is lightweight and easy to work with, available in various widths and lengths.
All profiles are in mill finish;
Used in brackets, supports, wear strips, buffers, skirting boards, repair and maintenance around the home.
Lightweight and easy to work with;
Can be bent into various shapes;
Easy to drill, rivet and screw.
